Used machine
EBOMOVE EM 140-MG60-30V
Company: Steigerwald Strahltechnik GmbH
Country: Germany
Field of application: Research & Development
Date of manufacture: 2010
Price: on request
Delivery date: from October 2022
TECHNICAL DATA
Size | |
Length (x) | 3.905 mm |
Width (y) | 1.500 mm |
Height (z) | 1.800 mm |
Volume | 10,5 m³ |
Workpiece movement | |
Table (X/Y): | 2.750 mm / 1.000 mm |
Travel (X): | 1.055 mm |
Adm. table load: | 3.000 daN (3,0 t) |
Rotary device | |
DS 600C: | max. 2.000kg |
8-fold rotary device | |
with tailstock | max. 8 x 25kg |
Movement of the EB generator | |
Travel (Y): | 850 mm |
Travel (Z): | 1.269 mm |
Pump set | |
Hochvakuumpumpstand mit DIF High vacuum pump set with Diffusion pump Evacuation time approx. 40 min to 7.0 x10-4 mbar (CDE Shortening of pump time possible on request. |
|
EB generator MOBILGEN Type | |
High voltage/power | 60 kV/30 kW |
Steuerung | |
CNC Siemens Sinumerik 840D & S7-300 | |
Other features | |
|

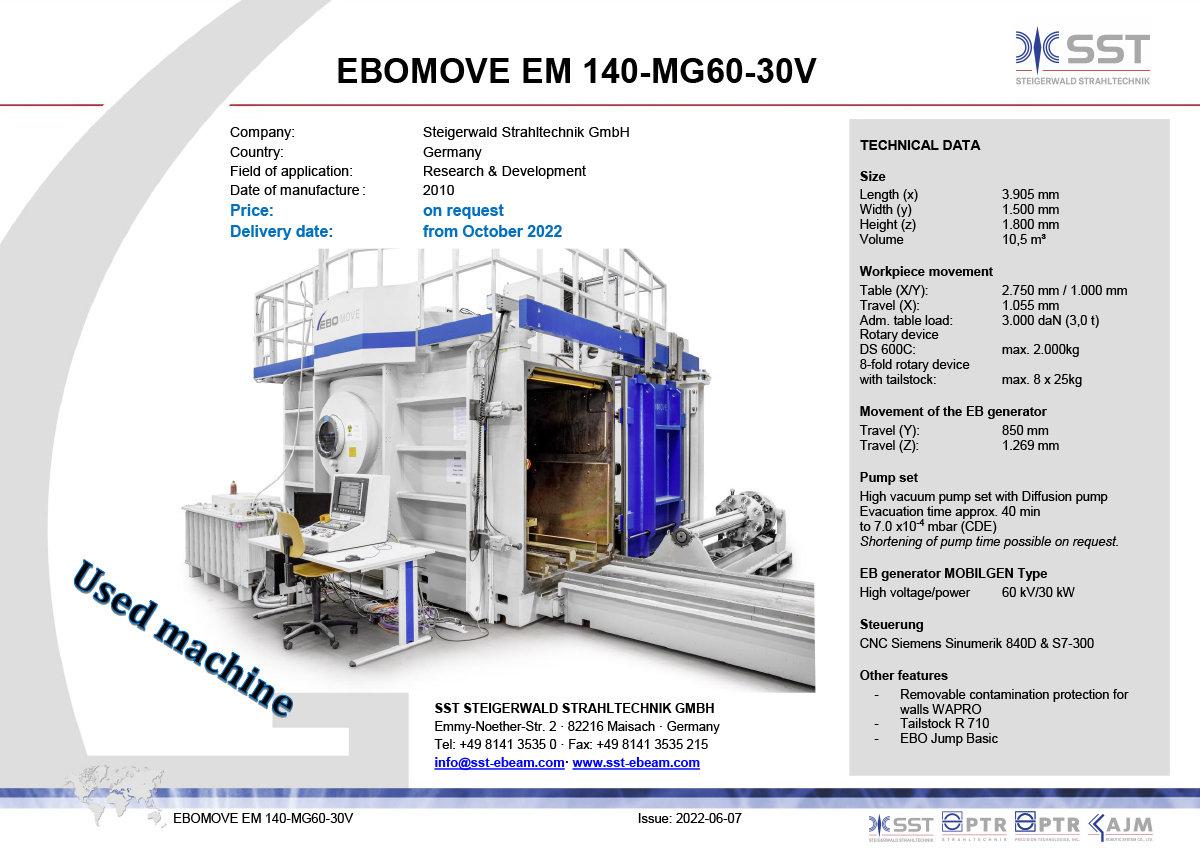

Download Data Sheet
